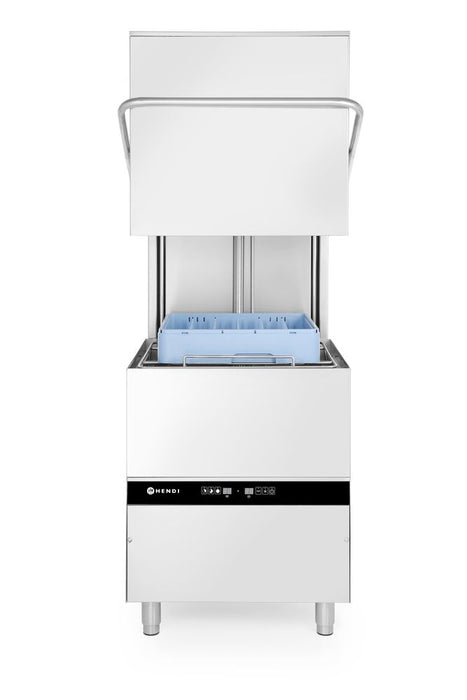

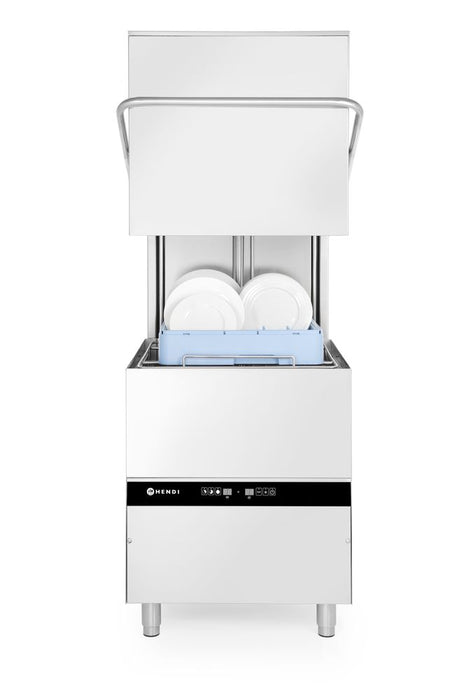

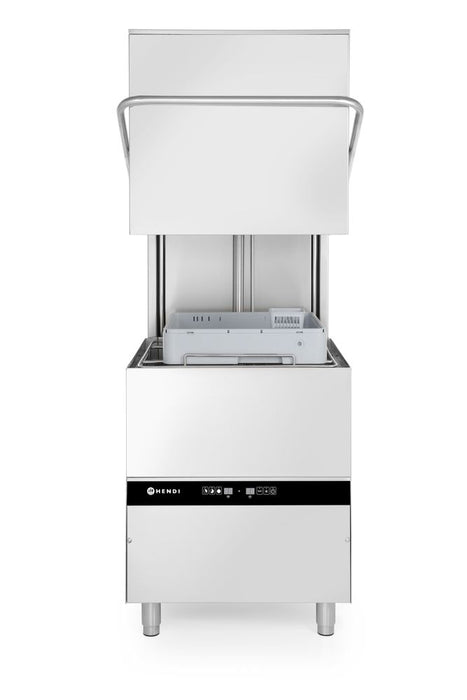

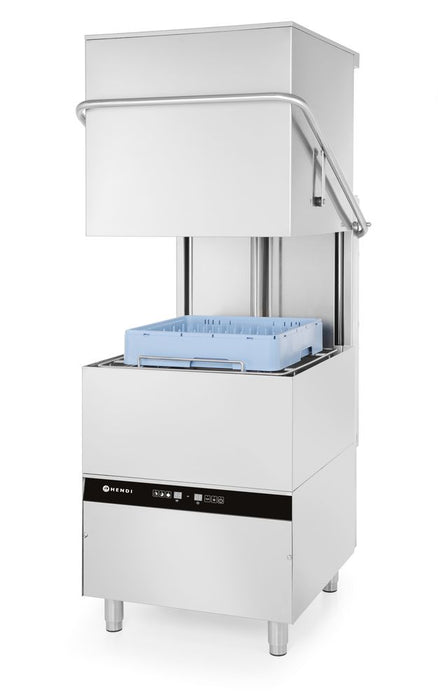

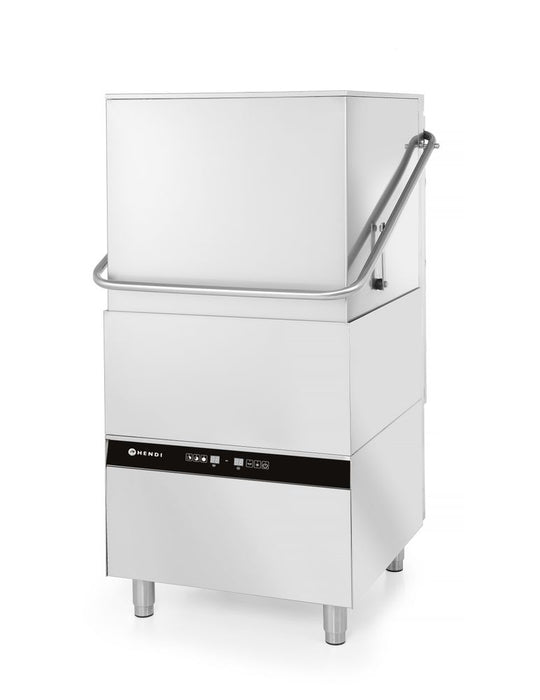

Pass-through dishwasher - electronic controls

Extremely easy to use, clean and maintain
Ideal for washing plates, cutlery, glassware, cups, trays and GN 1/1 containers
Electronic control
With dispensers for detergent + rinse aid and drain pump
Maximum height of signs 400 mm
Maximum height of glasses 395 mm
Touch the electronic control panel
AISI 304 stainless steel housing
Stainless steel upper and lower arms for washing and rinsing
Lifting the hood is made easier by built-in springs
Water temperature washing 60°C
Rinse water temperature 85°C
Capacity and output of the boiler 13.5 l / 7.5 kW
Tank capacity and power 68L / 6.0 kW
Cleaning pump power 1.5 kM
Electronic thermometers for the boiler and the bath separately
Safety thermostat for boiler/bath up to 105°C / 99°C
Watertightness index of the pump: IP 44
Corner installation of dishwasher possible
Water connection: 3⁄4
Weight: 131.5 kg
Adjustable stainless steel legs from 100 to 150 mm

FEATURES:
Three washing programs: 60, 120, 240 s
Including cleaning program
Possibility to perform final rinse with cold water - especially useful when washing glass
THERMO-PROTECTOR" system to prevent rinsing with cold water
8-point self-diagnostic system
"SOFT START" function to start the water pump at a lower pressure and gradually increase it to avoid damaging delicate dishes
Door with micro switch for use when the hood is up
ECO function - reduces power consumption when the appliance is not used for more than 15 minutes

EQUIPMENT:
1 universal glass basket 500x500x(H)105 mm
1 basket with pins for deep and shallow plates with 5x8 pieces, 500x500x(H)105 mm
1 cutlery basket 110x110x (H) 130 mm
Rinse aid and detergent dispenser
Drain pump
Water hose 1.5 m long, with 3⁄4" internal thread connection.
Drain hose
Power cord without plug
