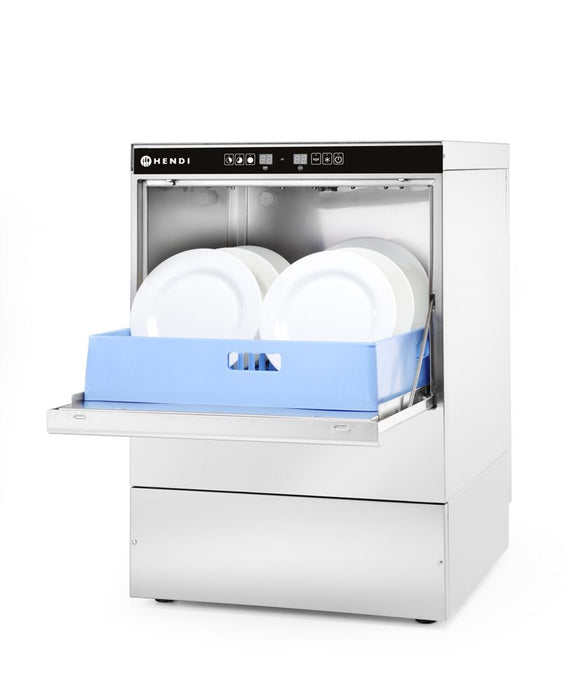

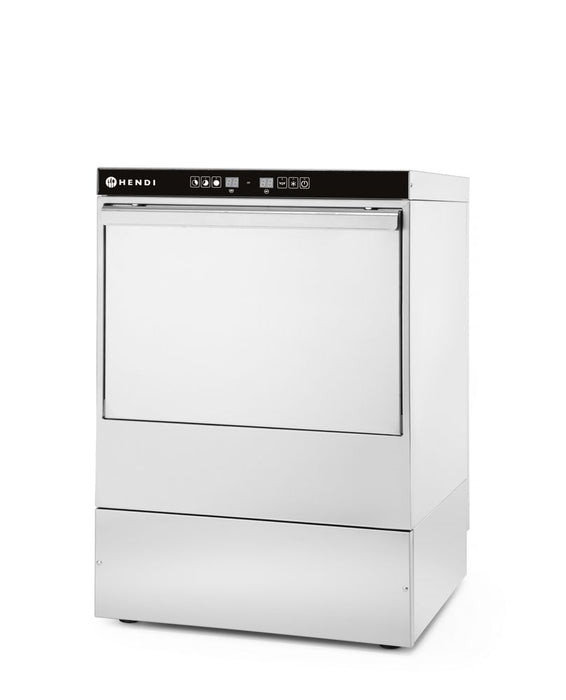

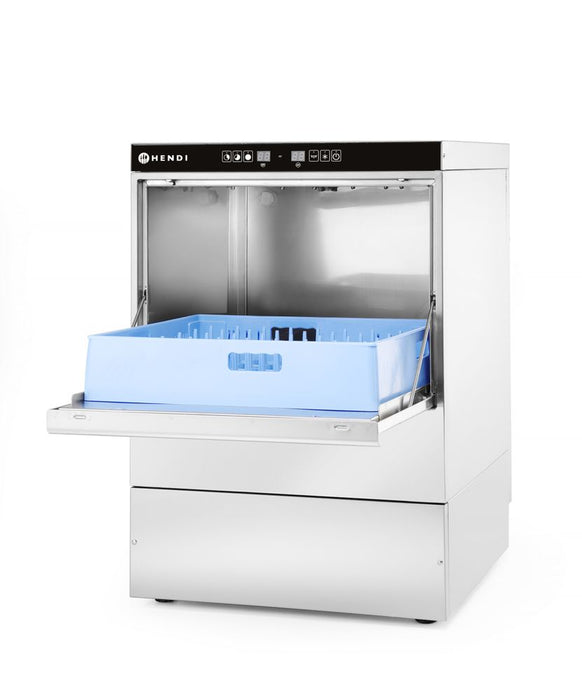

Dishwasher 50x50 - electronic controls

Extremely easy to use, clean and maintain.
Ideal for cleaning plates, cutlery, glassware, cups and trays.
Electronic controls.
Detergent and rinse aid dispensers included as standard.
Housing made of stainless steel AISI 304.
Rotating plastic wash and stainless steel rinse arms at the bottom of the chamber.
Stationary plastic wash arms and rotating stainless steel rinse arms at the top of the chamber.
Robust double-walled door equipped with a microswitch, stops the program when opened.
Maximum height of glassware: 325 mm.
Maximum height of signs: 335 mm.
Water temperature during washing: 60°C.
Water temperature during rinsing: 85 °C.
Boiler (capacity/power): 6L / 6 kW.
Bath (capacity/power): 35L / 2.8 kW.
Washing pump: 0.75 kM.
Safety thermostat for boiler/bath: up to 105°C / 99°C.
Electronic water thermometer for boiler and tank.
Pump sealing factor: IP 44. ø40 mm foot, ≈10 mm height adjustable.
Weight: 55 kg.

FEATURES:
Three washing programmes: 60, 120, 180 seconds (the washing programme is automatically extended by the time required to heat the rinse water to +85 °C).
Cleaning program for the dishwashing chamber.
Cold rinse function - ideal for washing glass.
THERMO-PROTECTOR system to prevent rinsing with cold water - guarantees that rinsing does not start until the temperature reaches 85 °C.
SOFT START system starts the water pump at low pressure and gradually increases pressure to protect delicate items.
8-point self-diagnostic system.
ECO system – for lower power consumption.

BENEFITS OF COLD RINSE:
Cools the glasses after cleaning, making them immediately ready for use.
Removes the odour of polish, ideal for wine glasses.

EQUIPMENT:
1 universal dishwasher basket 500x500x (H) 105 mm.
1 dishwasher basket 500x500x(H)105 mm for deep and shallow plates with 5 rows of 8 pins.
1 cutlery basket 110x110x (H) 130 mm.
Electric detergent and rinse aid dosing pumps.
Water hose 1.5 m long, with 3/4 internal thread connection.
Drain pump and drain hose.
Power cord without plug.
